Spring 和 Mybatis的整合

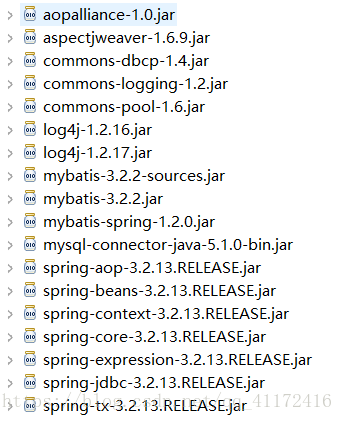

新建一个项目 导入jar包

根据银行账户表 建立一个实体类

package com.bankaccount.bean;

public class BankAccount {

    public int getId() {
        return id;
    }
    public void setId(int id) {
        this.id = id;
    }
    public String getAcc_no() {
        return acc_no;
    }
    public void setAcc_no(String acc_no) {
        this.acc_no = acc_no;
    }
    public String getAcc_password() {
        return acc_password;
    }
    public void setAcc_password(String acc_password) {
        this.acc_password = acc_password;
    }
    public double getAcc_money() {
        return acc_money;
    }
    public void setAcc_money(double acc_money) {
        this.acc_money = acc_money;
    }
    @Override
    public String toString() {
        return "BankAccount [id=" + id + ", acc_no=" + acc_no + ", acc_password=" + acc_password + ", acc_money="
                + acc_money + "]";
    }
    public BankAccount(int id, String acc_no, String acc_password, double acc_money) {
        super();
        this.id = id;
        this.acc_no = acc_no;
        this.acc_password = acc_password;
        this.acc_money = acc_money;
    }
    public BankAccount() {
        super();
    }
    private   int   id;
    private   String acc_no;
    private   String acc_password;
    private   double acc_money;
}

编写SQL 定义文件 根据 id 查询 银行账户

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//ibatis.apache.org//DTD Mapper 3.0//EN"
 "http://ibatis.apache.org/dtd/ibatis-3-mapper.dtd">
 <!-- namespace指定和哪个Mapper映射器接口对应 -->
<mapper namespace="com.bankaccount.mapper.BankAccountDAO">
    <!--  根据id 查询账号   -->
    <select id="findBankAccountNoById"   parameterType="int"
       resultType="string">
       select   acc_no  from  bank_account where id = #{n,jdbcType=VARCHAR}
    </select>

</mapper>

根据Mapper 映射器规则 编写DAO 接口

import com.bankaccount.bean.BankAccount;

public interface BankAccountDAO {
    BankAccount  findBankAccountById(int  id);
    String  findBankAccountNoById(int id);

}

在Spring 容器中 创建 SqlSessionFactoryBean

返回SqlSessionFactory依赖于  dataSource   和  Sql 定义文件

在Spring 容器创建 MapperFactoryBean

返回 DAO 的实现类 依赖于  接口 和 SqlSessionFactory
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:jdbc="http://www.springframework.org/schema/jdbc"
    xmlns:jee="http://www.springframework.org/schema/jee"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:util="http://www.springframework.org/schema/util"
    xmlns:jpa="http://www.springframework.org/schema/data/jpa"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd
        http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-4.1.xsd
        http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee-4.1.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.1.xsd
        http://www.springframework.org/schema/data/jpa http://www.springframework.org/schema/data/jpa/spring-jpa-1.3.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.1.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.1.xsd">
<!--  配置连接池对象  -->
    <bean  id="dataSource"  class="org.apache.commons.dbcp.BasicDataSource">
        <property name="driverClassName"  value="oracle.jdbc.OracleDriver"></property>
        <property name="url">
             <value>jdbc:oracle:thin:@localhost:xe</value>
        </property>
        <property name="username" value="system"></property>
        <property name="password"  value="123456"></property>
    </bean>

<!--  创建 SqlSessionFactoryBean  提供 SqlSessionFactory  -->
    <bean  id="sqlSessionFactory"  class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource"  ref="dataSource"></property>
        <property name="mapperLocations"  value="classpath:com/bankaccount/mapper/*.xml"></property>
    </bean>

  <bean id="mapperScanner"  class="org.mybatis.spring.mapper.MapperScannerConfigurer">
      <property name="basePackage" value="com.bankaccount.mapper"></property>
      <property name="sqlSessionFactory" ref="sqlSessionFactory"></property>
  </bean>
</beans>

测试

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import com.bankaccount.mapper.BankAccountDAO;

public class BankAccountDAOTest {

    public static void main(String[] args) {
        ApplicationContext  app  =
            new  ClassPathXmlApplicationContext("applicationContext.xml");
        BankAccountDAO accountDao = app.getBean("BankAccountDAO",
            BankAccountDAO.class);
        System.out.println(accountDao.findBankAccountNoById(2));

    }

}

---
